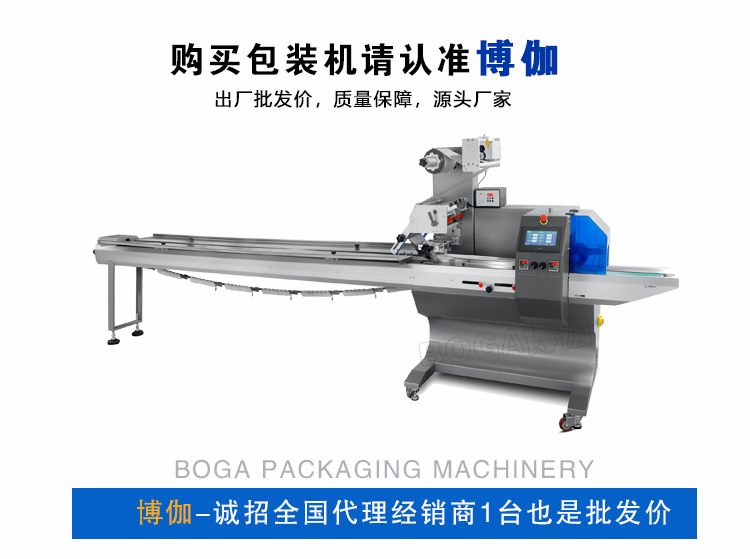

BG1000-350BAN Mobile packaging machine

1、Servo 3 motors, PLC controller,flexible bag length setting and cutting,saving time and film

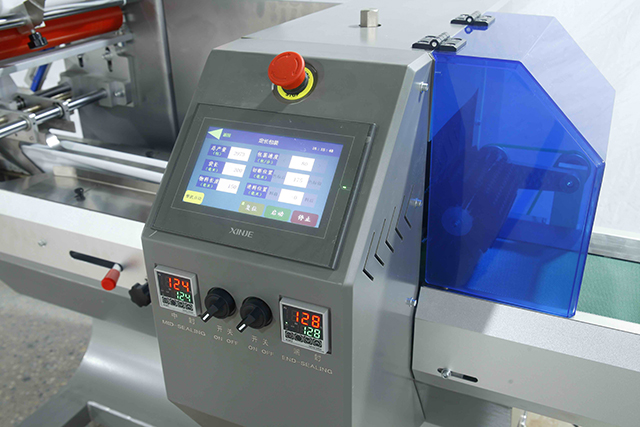

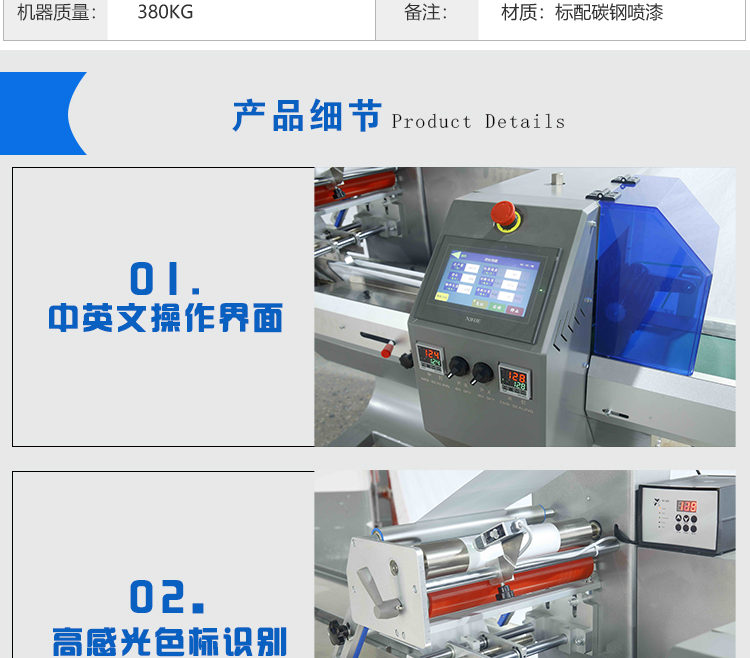

2、human-machine interface, convenient and quick parameter settings, when the product is sensed by the sensor, then it will be packing automatically, otherwise, it will be stopped.

3、Self diagnosis failure function, failure displayed clearly.

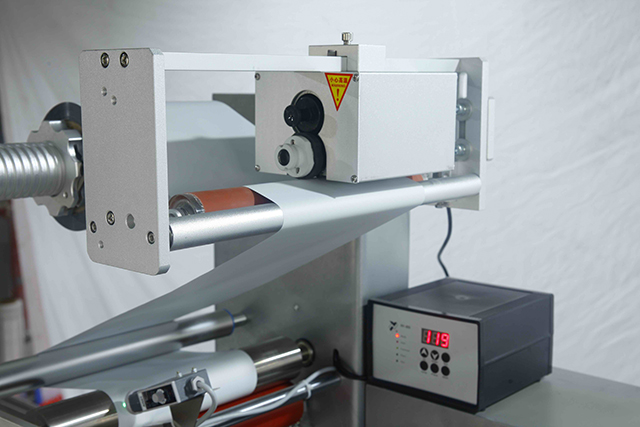

4、High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.

5、Separated PID control system for temperature, suitable for various packing materials.

Model

BG1000-350XBAN

BG1000-350XDAN

Film width

Max.340mm

Bag length(only   can choose one range)

65-190mm

90-220mm

120-280mm

150-330mm

Bag width

30-160mm

Product   height

Low knife Max.40mm

High knife Max.60mm

Max.film roll

Max.320mm

Speed

5-25m/min(Belt conveyor) / 40-230BPM(Chain conveyor

Voltage

220V,50/60HZ,2.6KW

Machine size

3533*810*1100mm(Belt conveyor)

3800*810*1100mm(Chain conveyor

Weight

300KG
